Processor & AI PerformanceCPU: Rockchip RK3576, Octa-core (4x A72 + 4x A53)
GPU: ARM Mali-G52 MC3
NPU: 6TOPs AI power, compatible with major AI frameworks -
Memory and StorageRAM: 4GB(8/16GB Optional)
Storage: 32GB（64/128/256GB Optional） -
MultimediaVideo Decoding: 8K@60fps (H.264, H.265, VP9, AV1, AVS2)
Video Encoding: 4K@60fps (H.264, H.265) -
ConnectivityEthernet: 1x Gigabit Ethernet ports
Wi-Fi: IEEE 802.11b/g/n/ac
Bluetooth: BT5.2 -

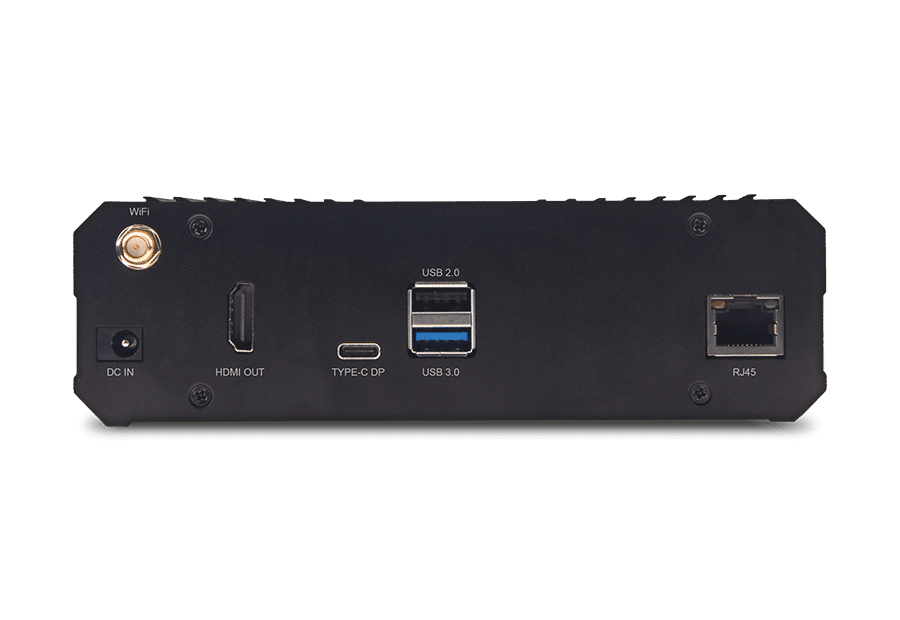

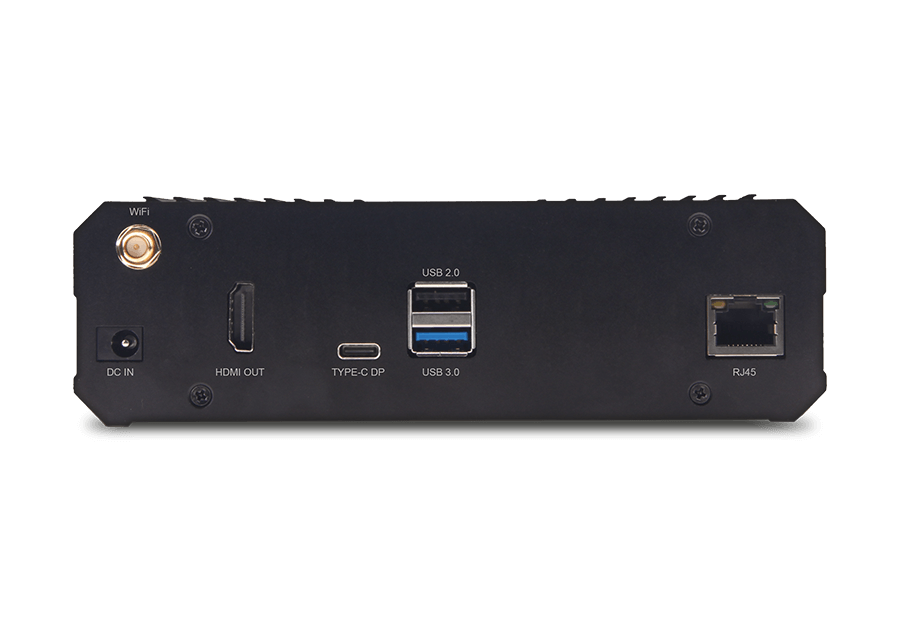

Display & I/O InterfacesDisplay Output: 1x HDMI (8K @ 60Hz)
USB Ports: 1x USB 3.0, 1x Type-C

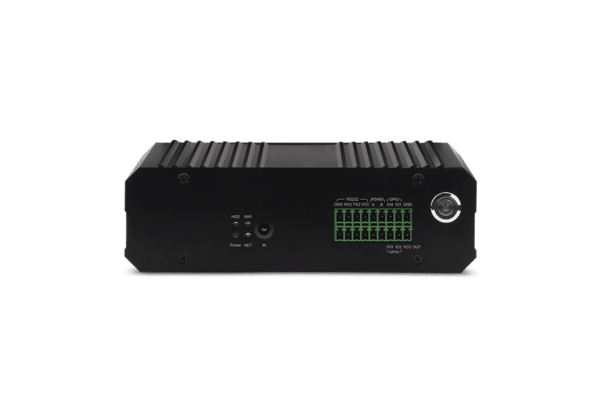

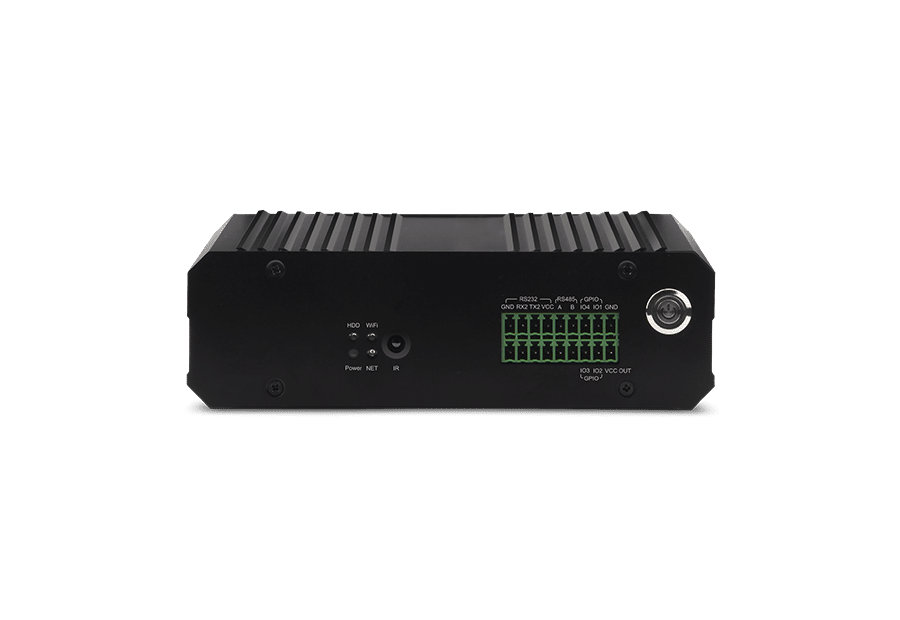

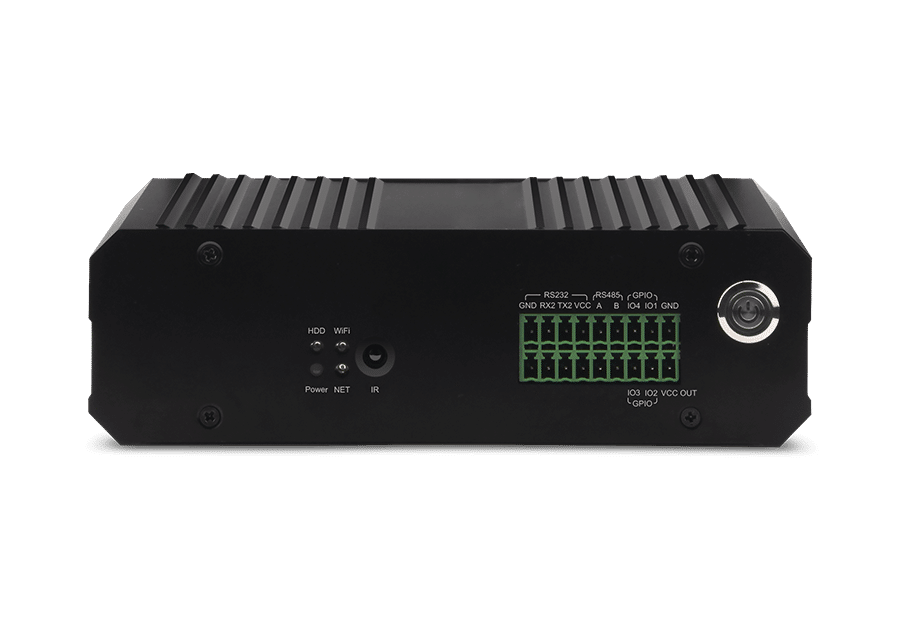

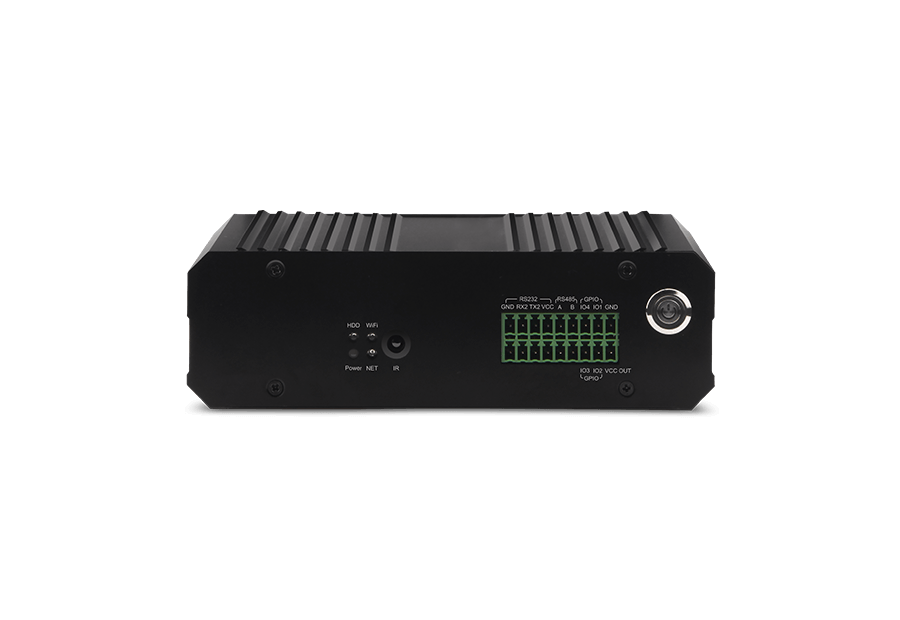

Serial & Expansion: RS-232 x1, RS-485 x1, GPIO x4, IR
Support SATA3.0/SPI/ I2C/UART and other internal expansion -
Operating SystemsAndroid 14
-
Size160 mm *125.5 mm *48mm
-
Operating temperatureCommercial: 0~55°C
Industrial: -40~85°C -
POWERAdapter 12V/2A
-
Built-in FeaturesBuilt-in watchdog and RTC battery

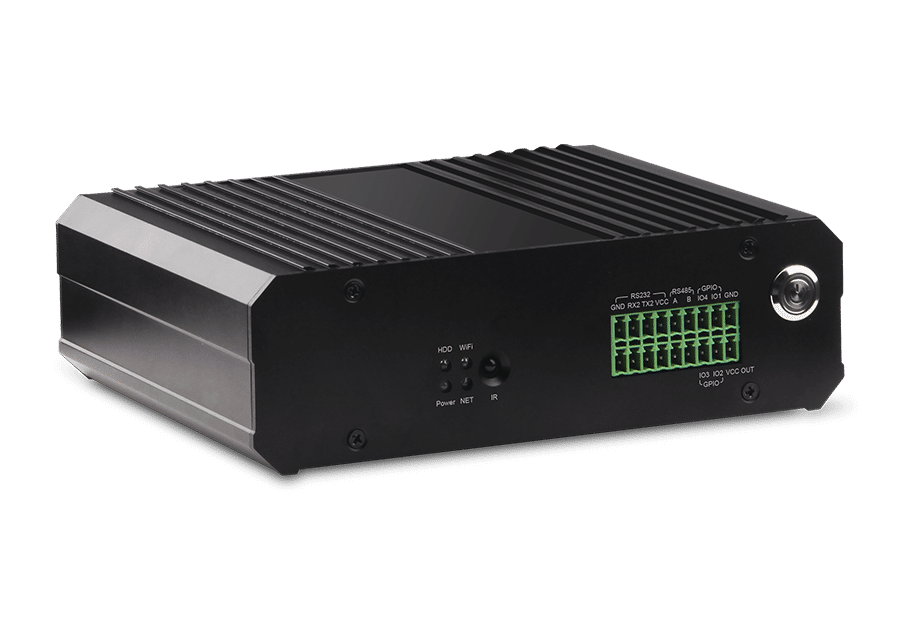

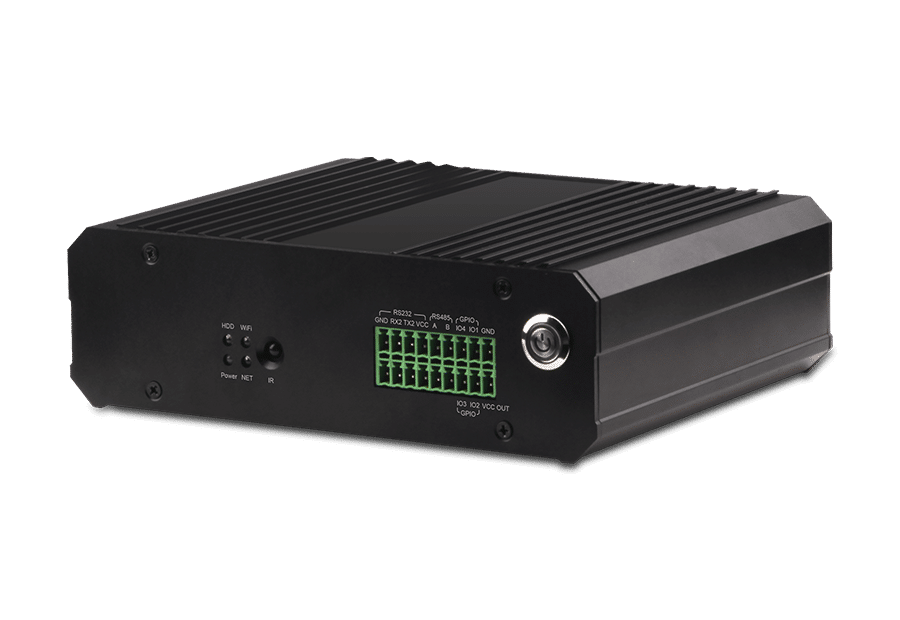

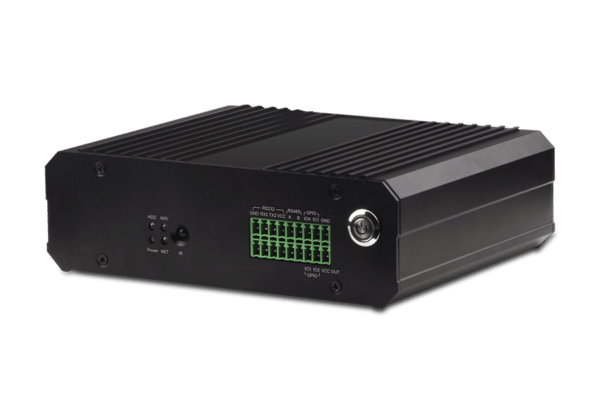

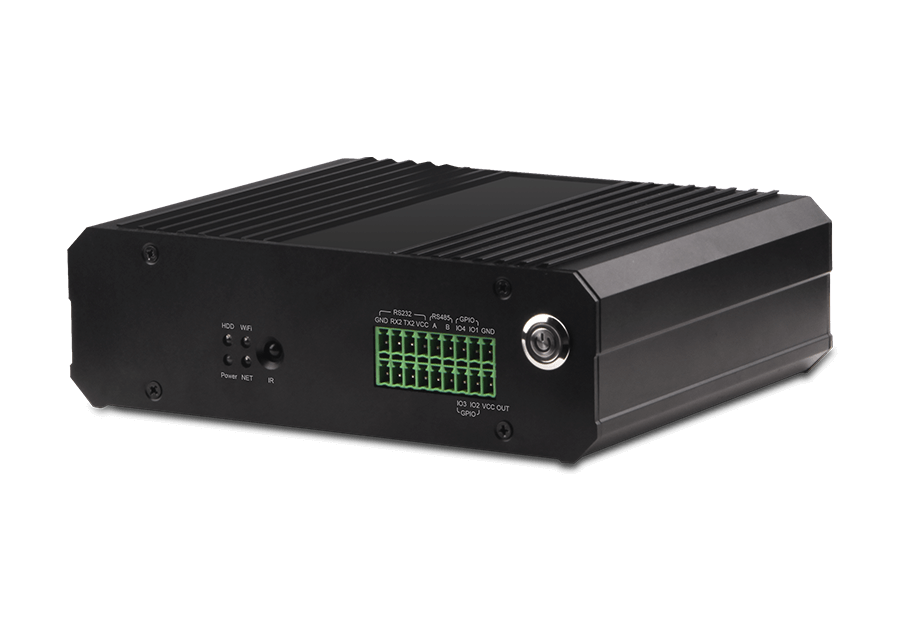

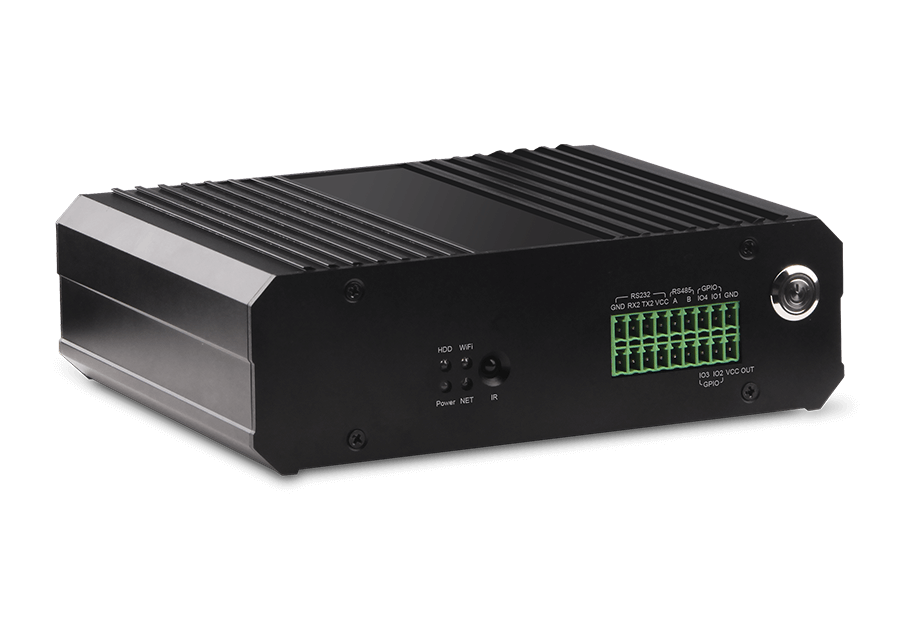

APC3576 Edge AI Mini PC
Geniatech APC3576 is an edge computing box powered by Rockchip RK3576, featuring an octa-core CPU (4×A72 + 4×A53) with 6 TOPS NPU. It supports Android 14, 32-channel 1080P decoding, 8K video processing, and rich interfaces like HDMI, Type-C, RS232/RS485, and dual-band Wi-Fi. Ideal for NVR, industrial control, and multimedia applications.
- Octa-core CPU with 6 TOPS NPU for AI tasks.
- Supports 32-channel 1080P@30FPS and 8K video editing/decoding.
- Provides 4K HDMI output and DisplayPort output via Type-C.
- Features Gigabit Ethernet, dual-band Wi-Fi (2.4G/5G) and Bluetooth.
- Industrial I/Os: RS232, RS485, GPIO, SATA3.0, and UART.
- Supports LPDDR up to 16GB and EMMC up to 256GB.
- Ensures 24/7 stable operation with a built-in watchdog and RTC battery.
