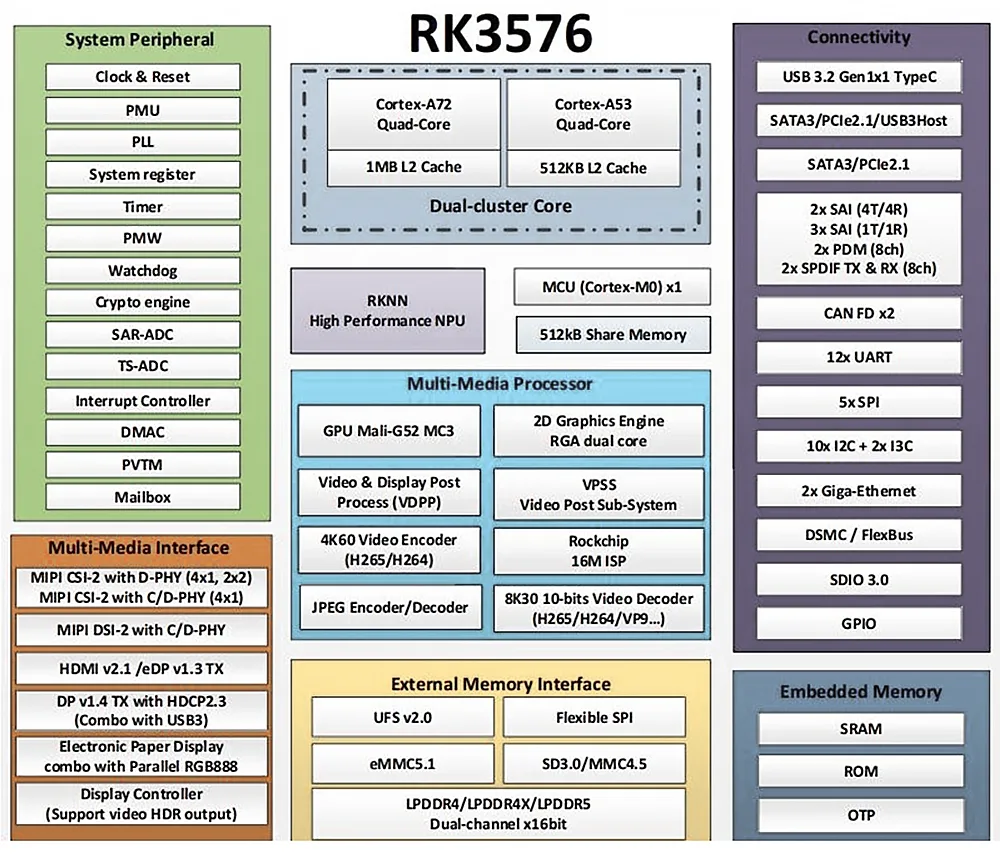

CPURockchip RK3576
Octa-core configuration with 4x Cortex-A72 and 4x Cortex-A53 -
GPUARM Mali-G52 MC3 with support for OpenGL ES 1.1, 2.0, 3.2, OpenCL 2.0, and Vulkan 1.1
-
NPU6 TOPS AI accelerator supporting INT4/INT8/INT16/BF16/TF32 mixed operations and framework switching of TensorFlow / MXNet / PyTorch / Caffe
-
Memory and StorageRAM: 4GB(8/16GB Optional)
Storage: 32GB（64/128/256GB Optional） -
MultimediaVideo Decoder: Supports H.264, H.265, VP9, AV1, and AVS2 up to 8K @ 30fps or 4K @ 120fps
Video Encoder: Supports H.264 and H.265 up to 4K @ 60fps -
ConnectivityEthernet: 2x Gigabit Ethernet ports
Wi-Fi: IEEE 802.11b/g/n/ac
Bluetooth: BT4.2 (Optional 5.0)
3G/4G: 1 * Mini PCIE (Optional） -
Display InterfacesHDMI OUT*1( 7680×4320@60Hz)
eDP*1 up to 4K @ 60Hz
MIPI DSI connector up to 2K @ 60Hz
TP(I2C) -
Other interfaces7x USB: 1x USB 3.0, 1x type-C, 1x USB2.0 Type A + 4x 4PIN
RS232, RS485, Can bus, GPIO, M.2, speaker, SPDIF, UART, Debug -
Operating SystemsSupports multiple OS including Android14 / Linux Debian12
-
Size146 x 102 mm
-
Operating temperatureCommercial: 0~55°C
Industrial: -40~85°C -
POWERDC wide voltage 9~24V (Φ5.5mm / φ2.1mm)
POE power supply

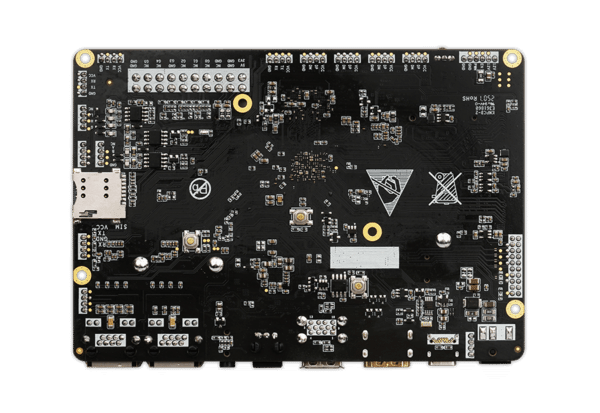

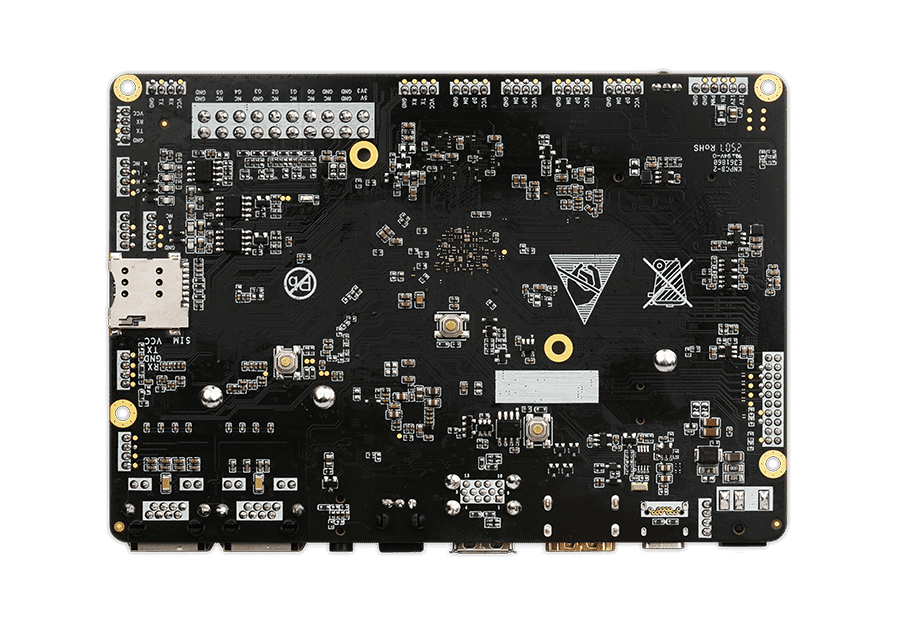

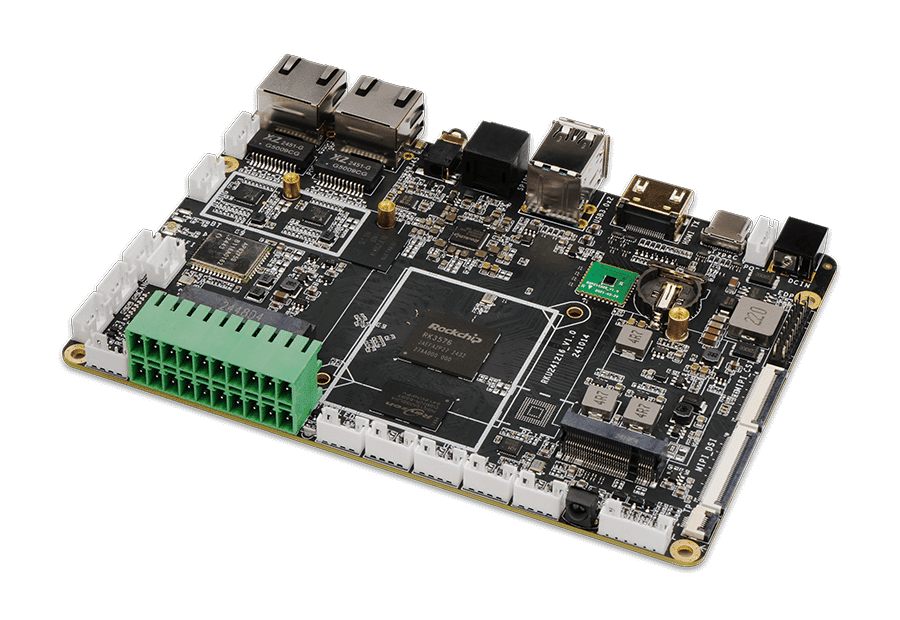

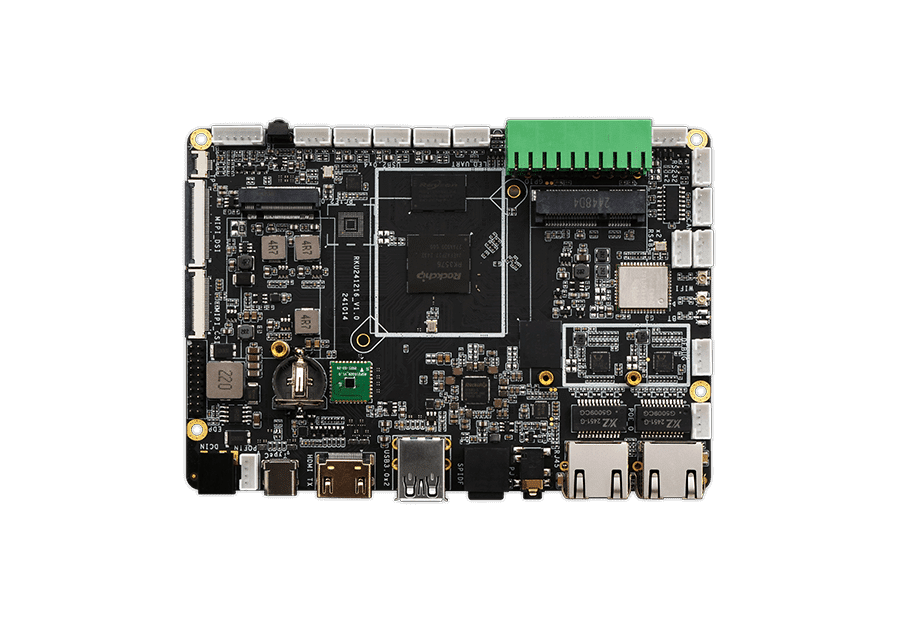

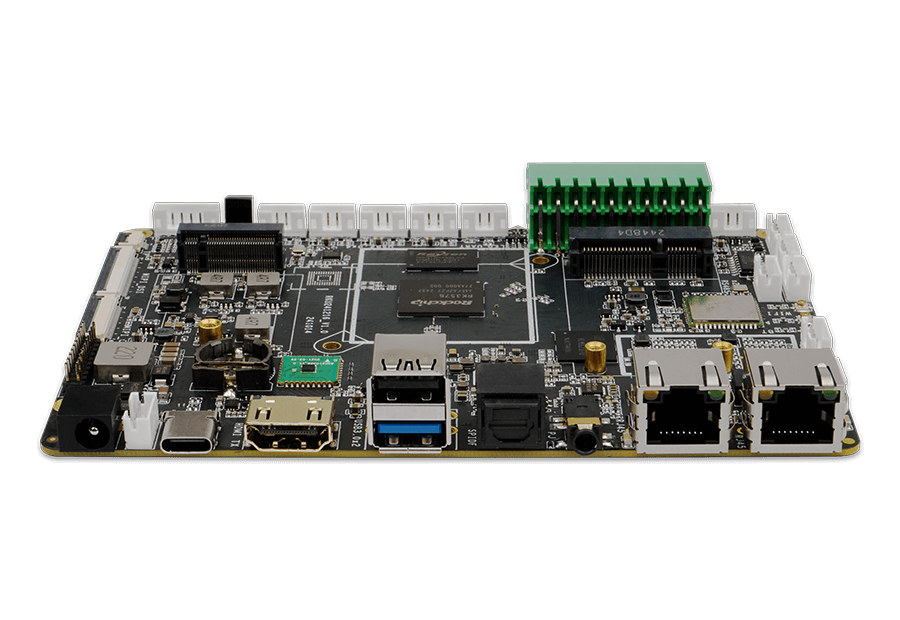

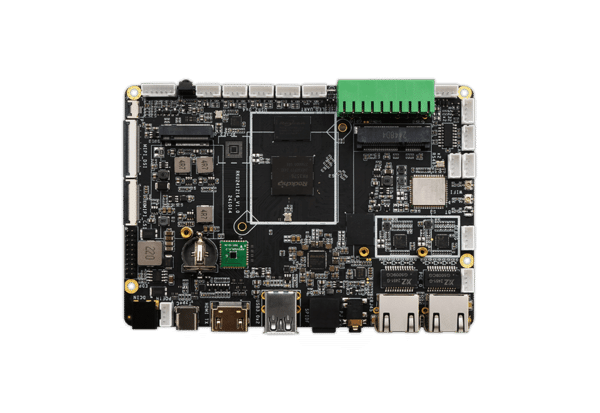

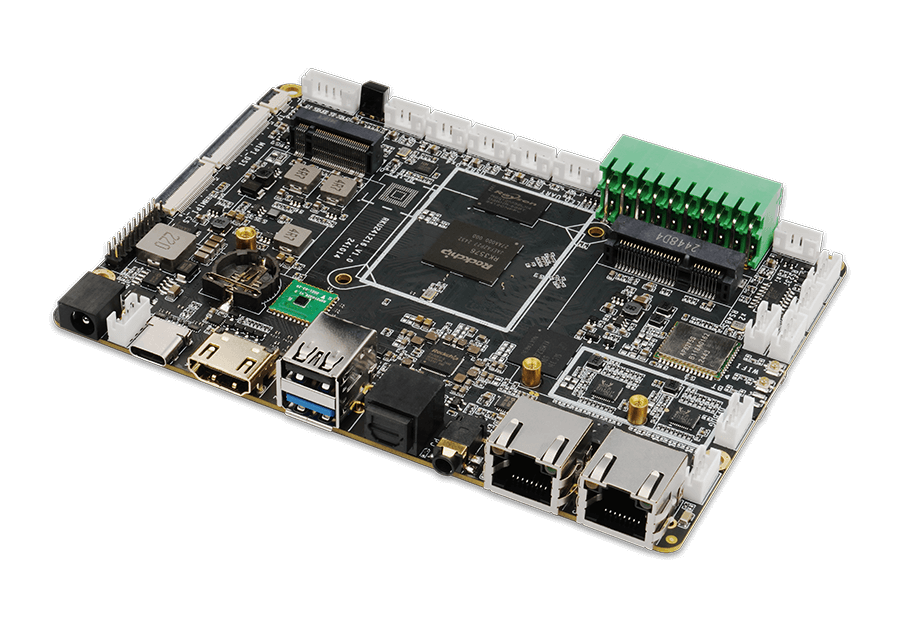

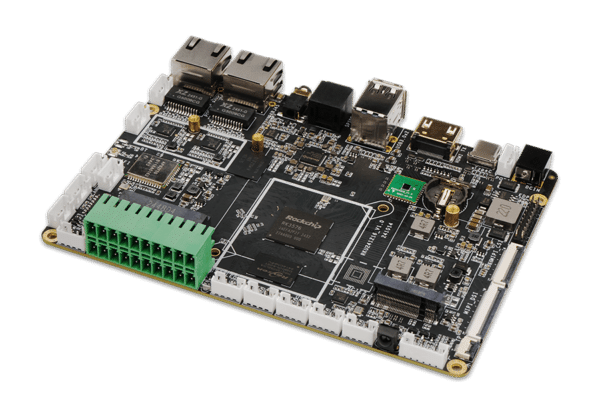

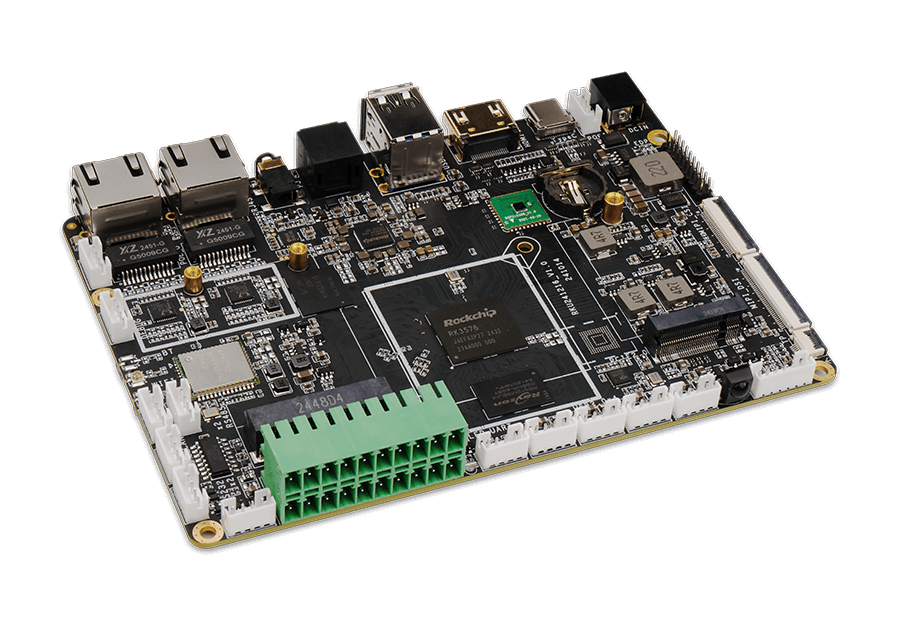

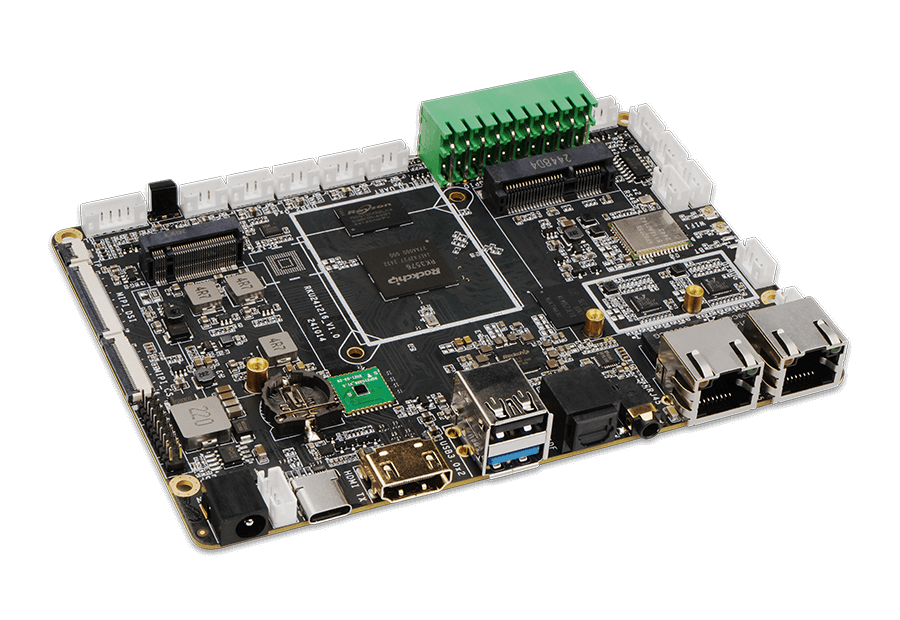

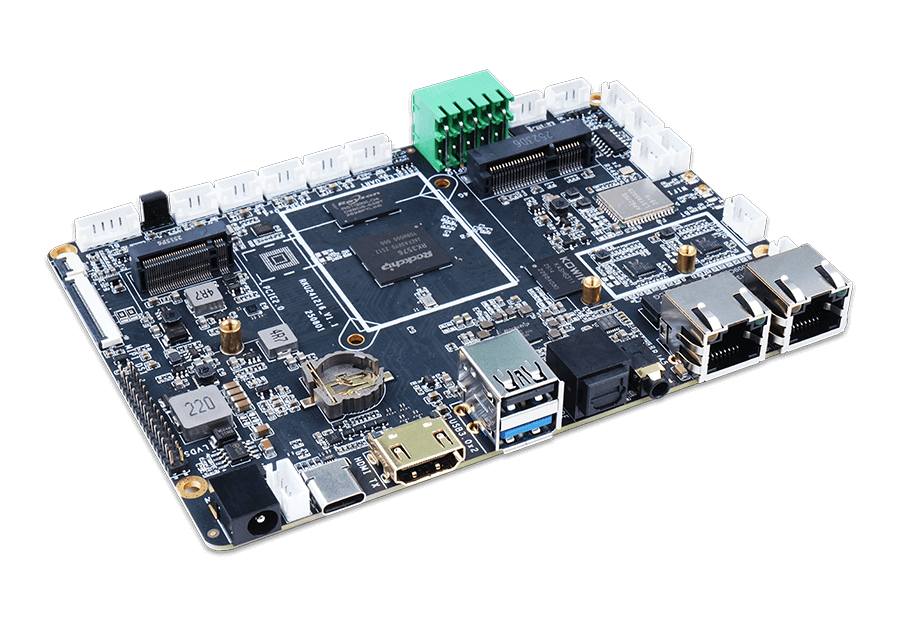

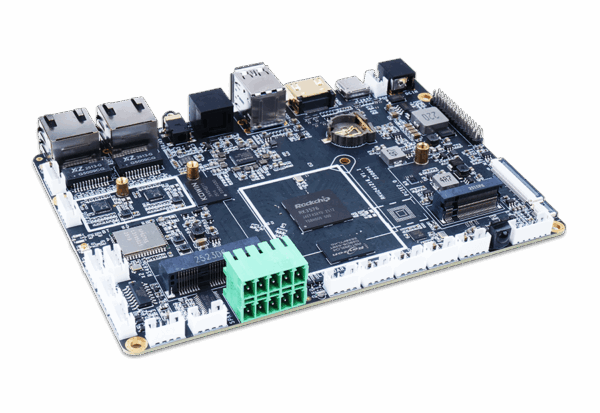

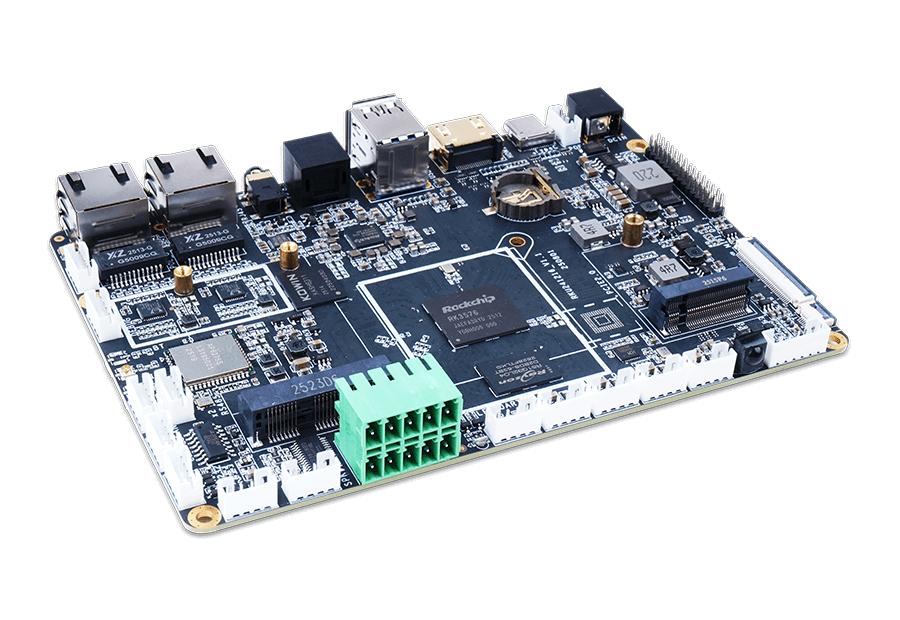

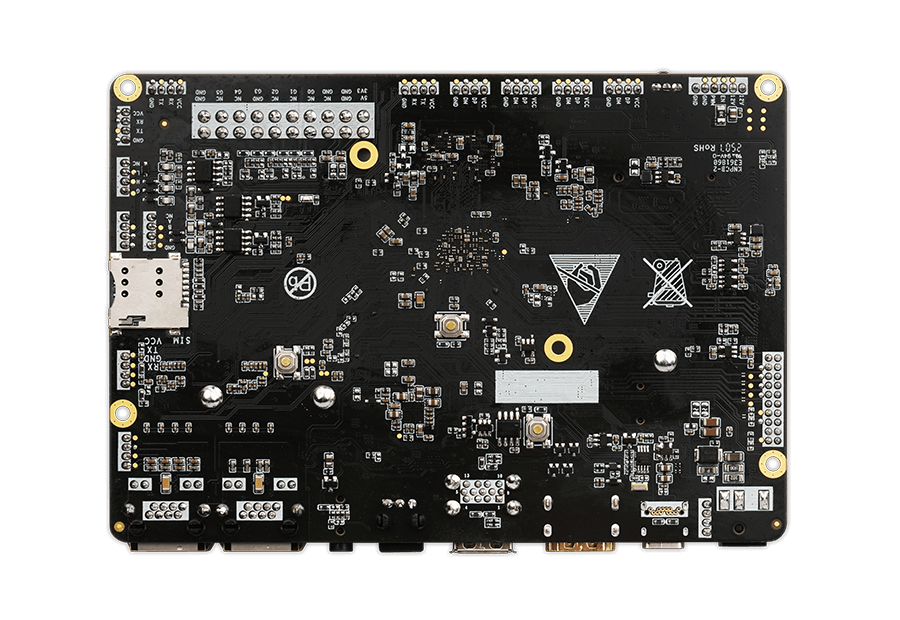

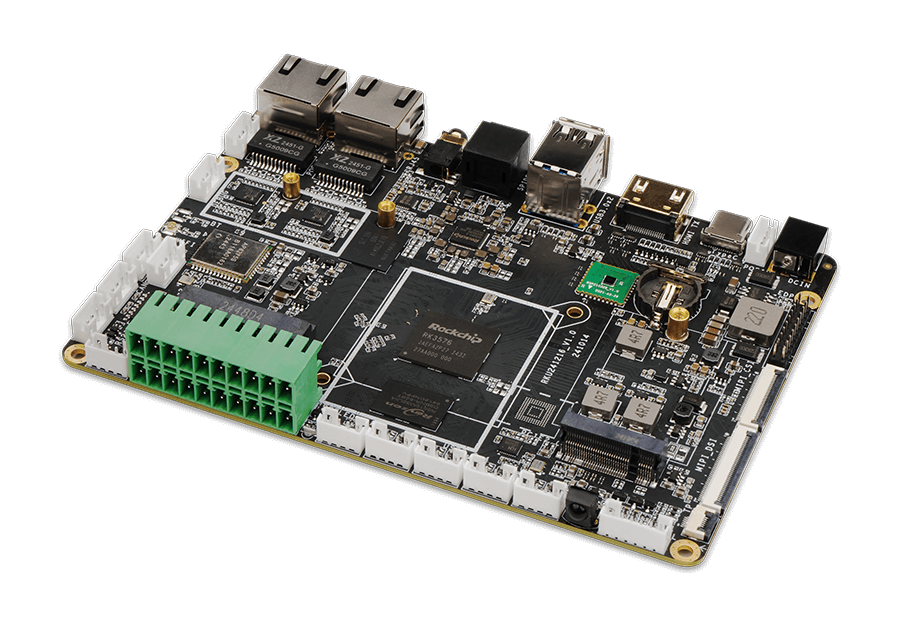

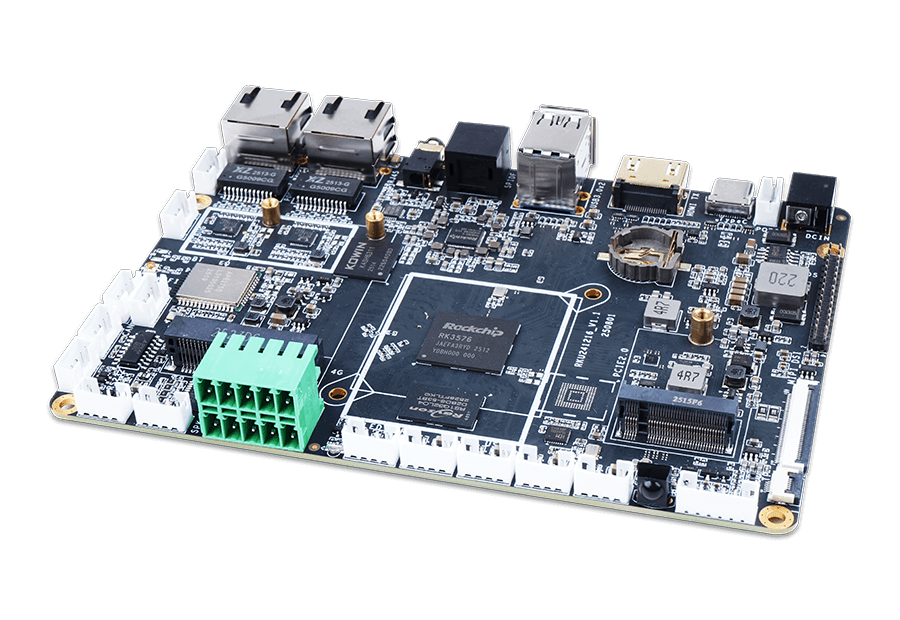

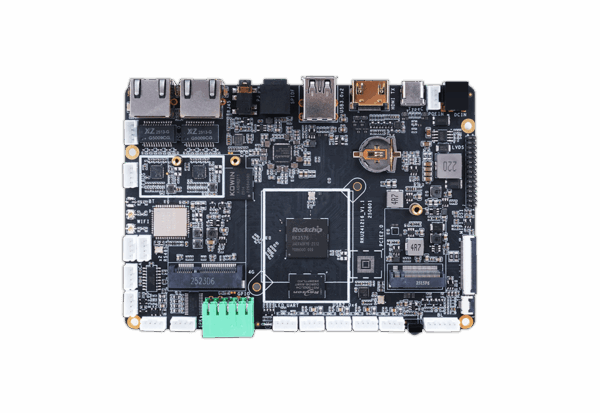

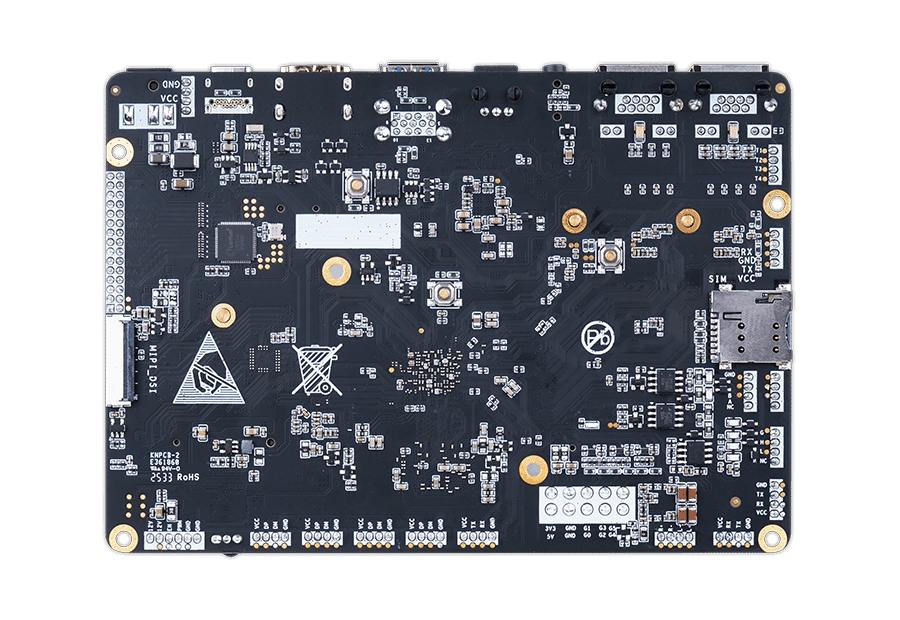

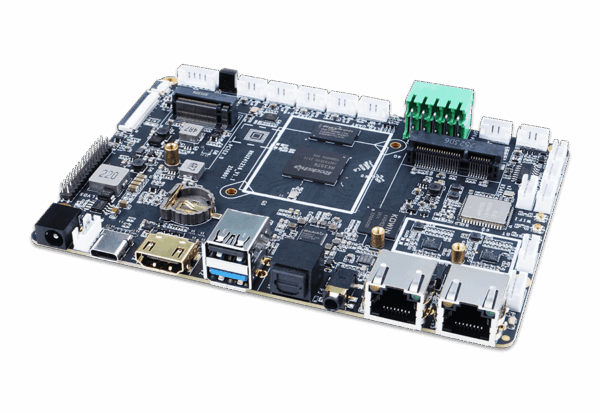

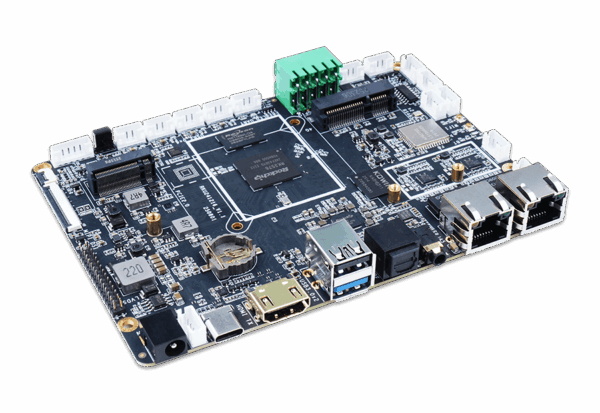

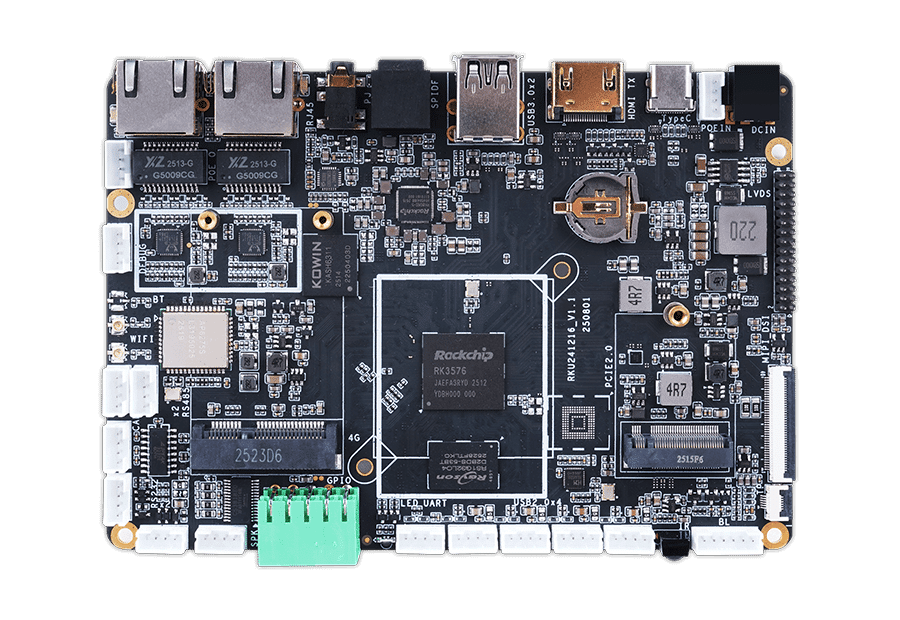

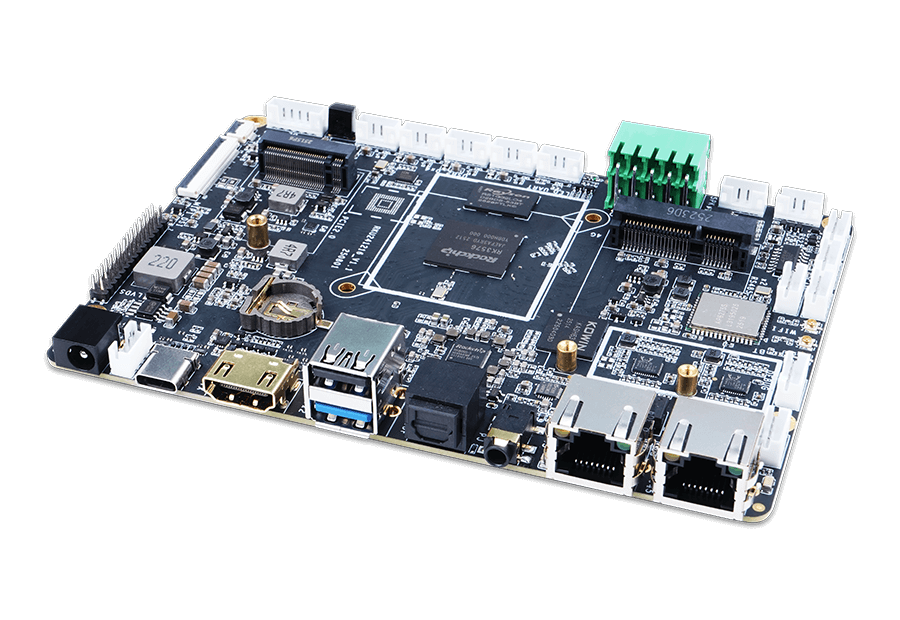

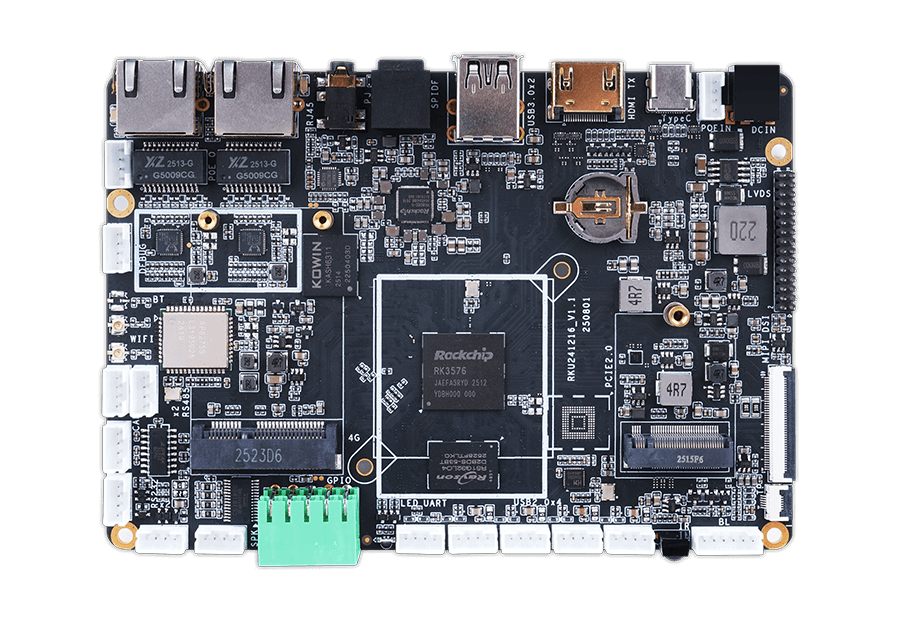

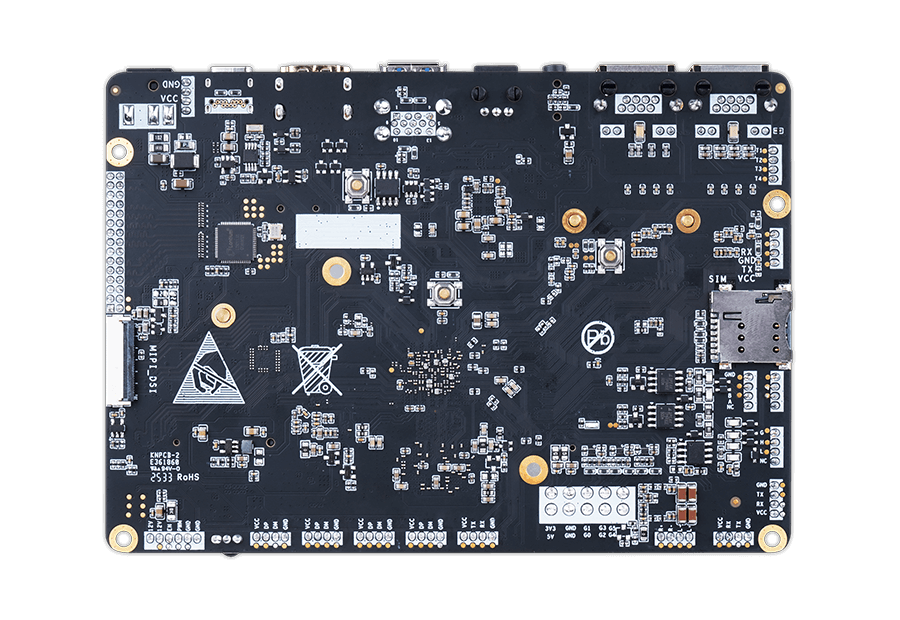

DB3576 3.5″ AIoT Board
Geniatech DB3576 is a compact 3.5″ IoT single-board computer powered by Rockchip RK3576, featuring an octa-core CPU (4× Cortex-A72 + 4× Cortex-A53), an ARM Mali-G52 GPU, and a 6 TOPS NPU. It supports Android and Linux Debian, with flexible LPDDR4 memory, eMMC storage options, robust connectivity, and multiple display and industrial interfaces—ideal for AIoT and edge computing.
- Octa-core CPU (4×A72 + 4×A53) with 6 TOPS NPU for AI acceleration.
- Multiple OS support: Android 14 and Linux Debian 12.
- Multi-screen display via HDMI/eDP/MIPI DSI with 4K decoding.
- Dual Gigabit Ethernet, Wi-Fi 5, and optional bluetooh.
- Industrial I/Os: 2×RS232, 2×RS485, CAN, and GPIO.
- Wide voltage input (9-24V) with POE power supply.
- Expandable storage via M.2 PCIe/SATA and USB 3.0/Type-C.
