CHIPSET | NXP iMX8M Plus | |
MARKET AREA | Global | |
SMARC-Module
|
OS | Yocto(Linux)/Android 10 |
SOC | 4 x Cortex-A53, up to 1.8GHz&1 x Cortex-M7, up to 800MHz | |
GPU | GC7000UL with OpenCL and Vulkan support
Supports OpenGL ES 1.1, 2.0, 3.0, OpenCL 1.2, Vulkan |
|
NPU | 2.3 TOP/s Neural Network performance | |
LPDDR4 | 4GB(1G-8G optional) | |
EMMC | 32GB eMMC5.1(8-128GB Optional) | |
Wi-Fi/BT | Wifi2.4G+5G +BT 5.0 | |
Development board
Interfaces
|
SMARC | SMARC V2.1 Compatible with SMARC modules CPU Modules. (82 x 50mm) |
External I/O Connector | 1 x upgrade Key 1 x Reset Key 1 x DC Jack 2 x USB 2.0 Type A 2 x USB 3.0 Type A 1 x USB Type C 2 x Giga Ethernet 1 x Headphone 1 x Micro SD Socket 1 x Micro SIM Socket 1 x HDMI Out |
|
Internal I/O Connector | 1 x RS232 4P Header 1 x RS485 4P Header 1 x SW1 for System boot mode switch 1 x Expended Connector 2×20 P Header 1 x B2B Connector for AI module 60Pin 1 x B2B Connector for AI module power supply 30Pin 1 x Speaker (Left/Right Channel) 4P Header 2 x USB2.0 4P Header 1 x Mic 2P Header 1 x RTC-Battery 1 x FAN 4P Header with FAN PWM 1 x LCD Backlight 6P Header 1 x LVDS Panel Power Switch 1 x LVDS Screen Connector 2x15P 1 x M.2 Key B for 4G/5G 1 x Mini PCIe for 4G 1 x M.2 Key M for Storage or AI module (cannot be used simultaneously with the B2B connector.) 1 x A53 Core Debug connector (UART) 1 x I2C Touch Screen connector 1 x MIPI DSI connector for MIPI Panel 1 x MIPI CSI connector for MIPI Camera 2 lanes 1 x MIPI CSI connector for MIPI Camera 4 lanes 2 x CAN 4P Header |
|
DC-IN | 12V2A | |
Dimensions | 190*125mm |

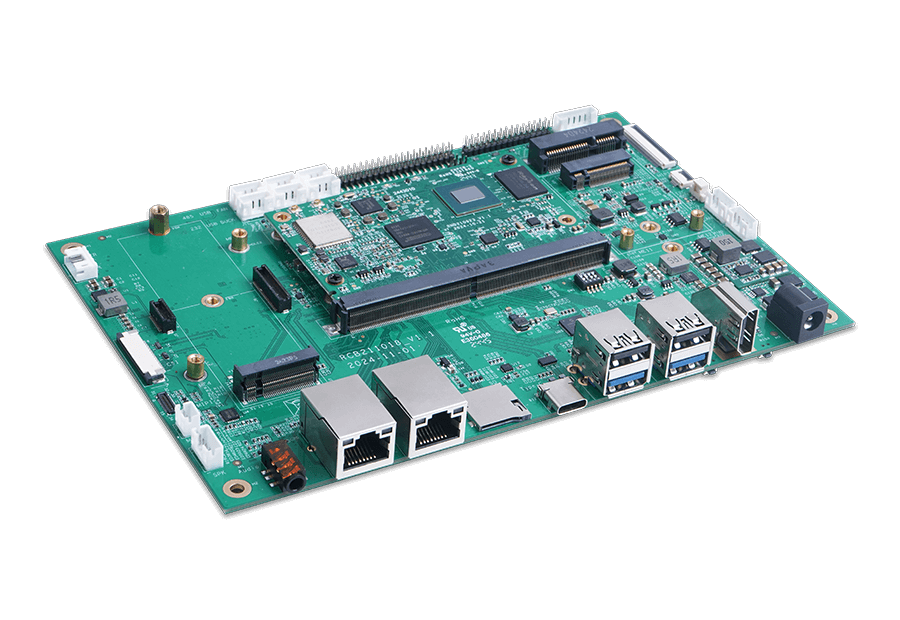

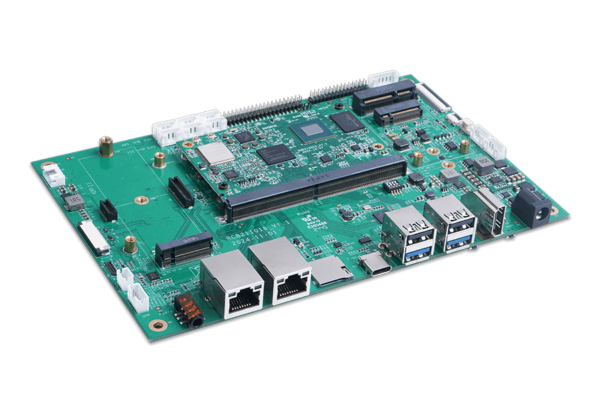

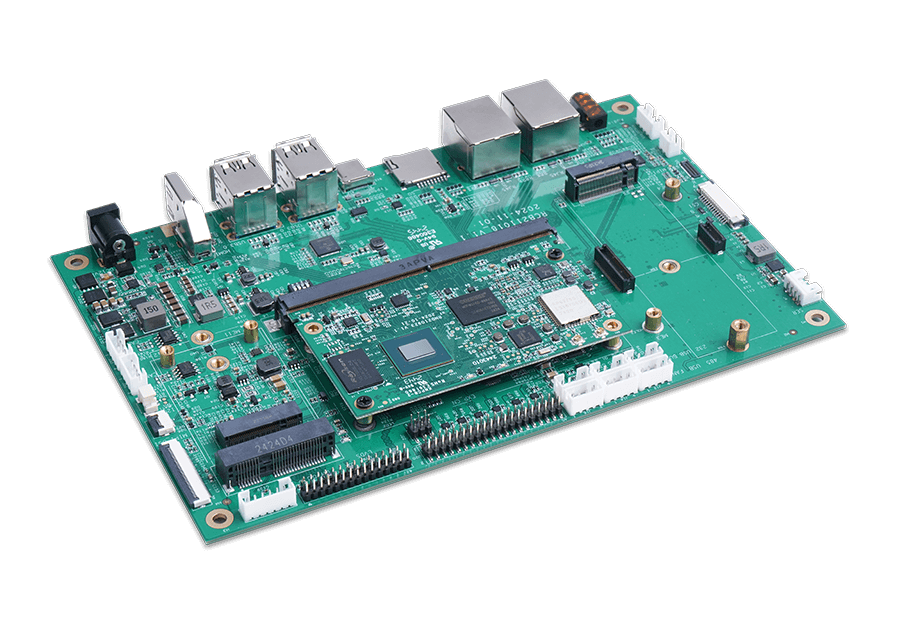

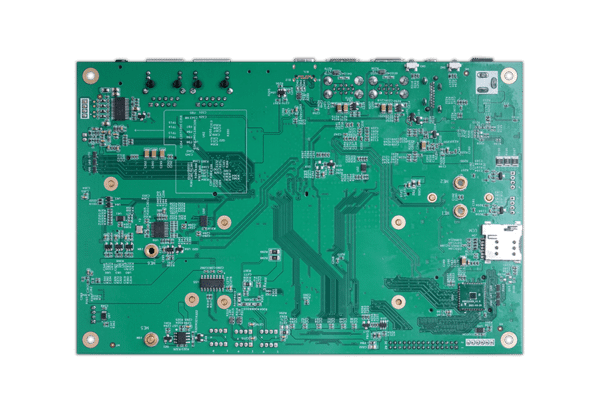

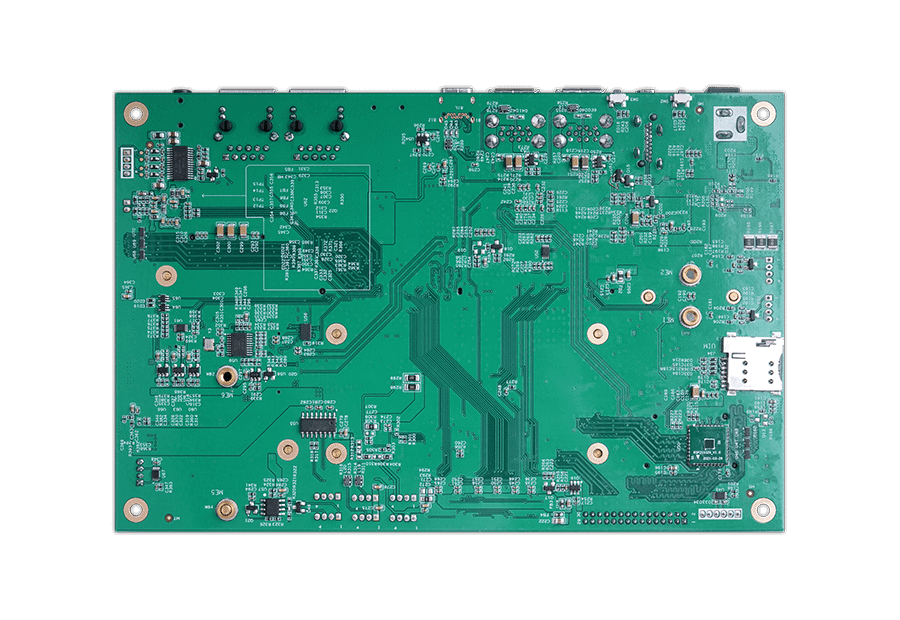

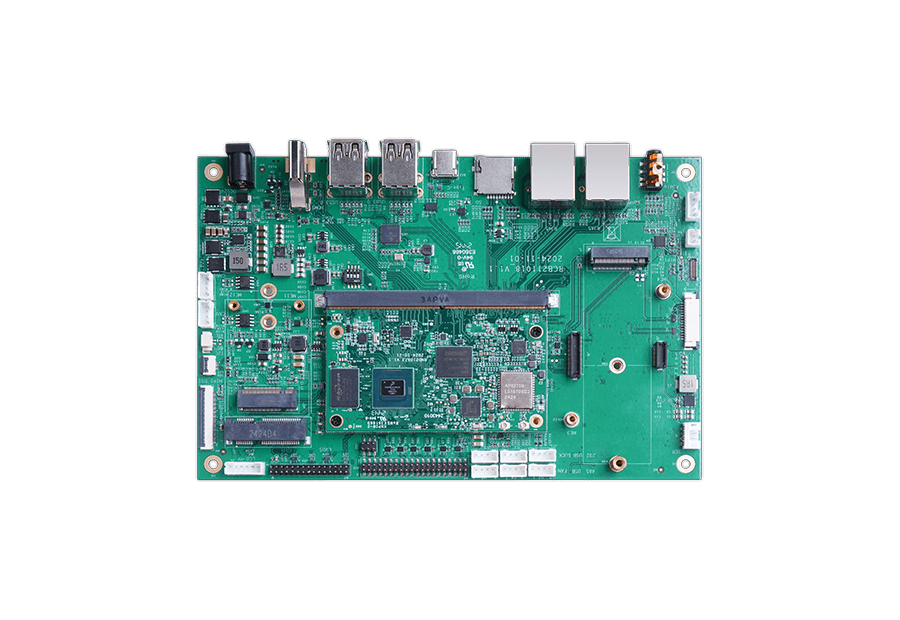

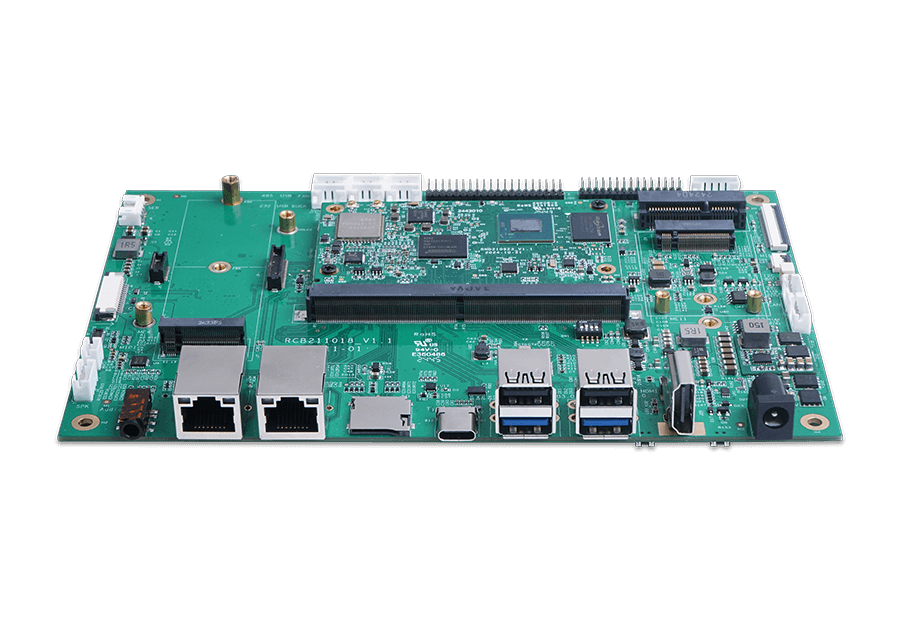

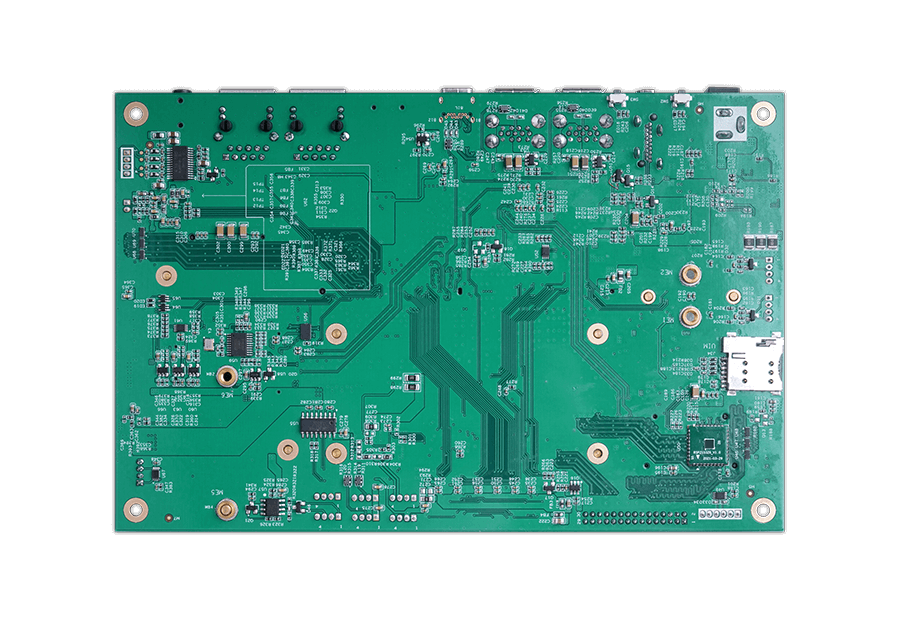

DB820P – i.MX 8M Plus SMARC Board
DB820P SMARC development board delivers AI edge computing through NXP’s i.MX 8M Plus SoC with 2.3 TOPS NPU, expandable AI acceleration via M.2 PCIe or Board-to-Board connectors. This versatile platform combines 4K video processing, multi-display support, and industrial-grade I/Os in a compact SMARC form factor, ideal for vision AI and industrial automation applications.
- 2.3 TOPS onboard NPU + expandable AI accelerator
- i.MX 8M Plus SoC with quad-core Cortex-A53 + Cortex-M7
- 4K H.265/H.264/VP9 hardware decoding capabilities
- MIPI-CSI/DSI, HDMI 2.0, LVDS display/camera interfaces
- M.2 slots (PCIe/NVMe) for AI modules & storage
- Dual Gigabit Ethernet, scalable 4G & 5G, CAN, RS232/485
- Compact SMARC 2.1 form factor for easy integration
