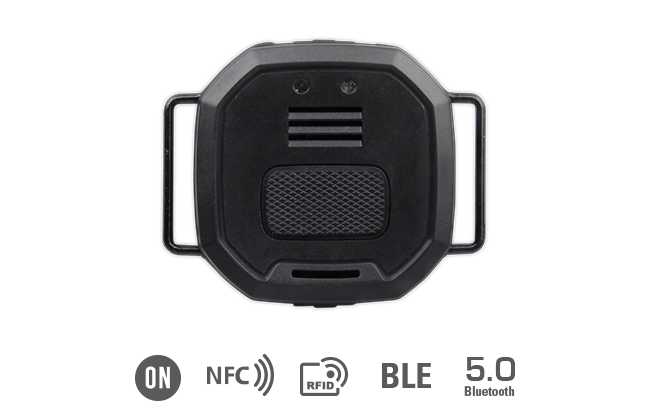

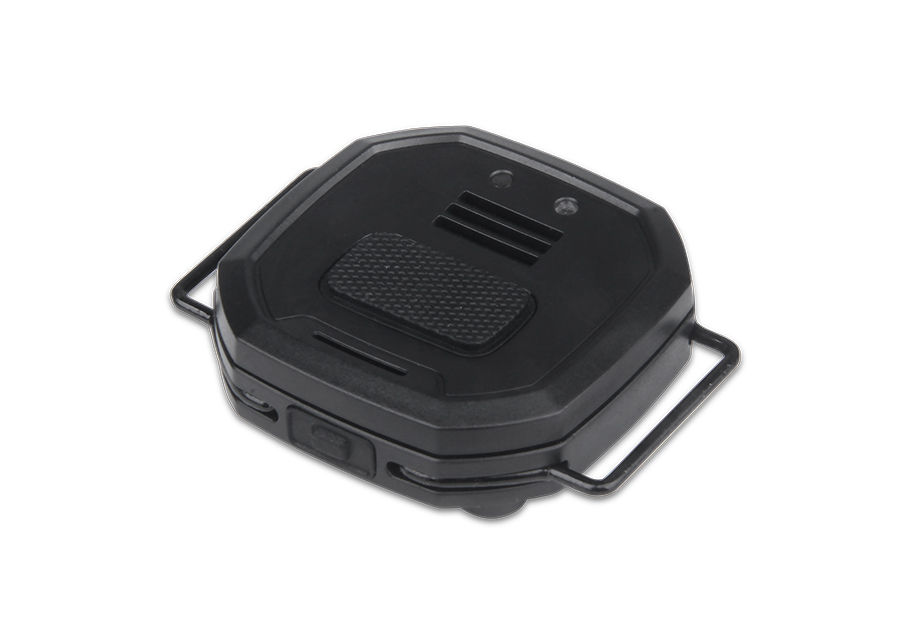

IoT Terminal MuSeOn 1.1

MuSeON features sensors from Bosch Sensortec for air quality, humidity, pressure and temperature together with a 3-axis gyroscope, accelerometer and magnetometer and a 6-axis inertial measurement unit. This allows for recognition of the wearer’s activity, together with indoor navigation and positioning. There is an ambient light sensor with wide operating range and an omnidirectional, stereo digital microphone. MuSeON has a dual RFID interface and is housed in an IP65-rated case. Arrow, Geniatech and ON Semiconductor designed the multi-sensor device and its firmware. Arrow also supplies the industrial gateways based on the Geniatech IoT Developer Board 4 and is instrumental in the integration with the IBM Watson, Microsoft Azure and Siemens MindSphere cloud platforms. Combining the powerful data analytic capabilities of these platforms with the high quality sensor data and long battery life of MuSeON creates a highly effective solution for remotely monitoring and protecting workers with minimal user burden.

Category:
Get A Quote

Specification

  • CPU
    Arm® Cortex®−M3 Processor
  • CPU Frequency
    48MHz
  • Internal Storage
    384 kB of flash memory
  • Communication protocol
    BT5.0
  • FOTA
    Suports

Multi-Sensor

  • Gas Detect
    IAQ index 0-500
  • Humidity
    operating Range 0-100
  • Pressure
    operating pressure Range 300-1100 hpa
  • Temperature
    operating temperature Range -40 to +80
  • 3-axis accelerometer
    Range: 0-1000
  • 3-axis gyroscope
    Range :0-1000
  • 3-axis digital geomagnetic
    Range :0-1000
  • Ambient Light sensor
    Range :0 to 65535lux
  • Microphone
    Range :- 160 to +160db
  • Key
    Programmable signal button
  • Indication
    Programmable signal Light
  • Other sensor
    Customized

Power, Mechanical and Environmental

  • Dimensions
    38*38*11(mm)
  • Net Weight (g)
    15g (including battery)
  • Temparatur Range
    Celsius -20 to +80 C
  • Waterresistant
    IP 65 Water & Dust Protection
  • Power
    CR2032
  • Compliant
    RoHS and Reach compliant



External Source Collection:

Geniatech

ONSEMI

BOSCH SENSORTEC

InvenSense

Microchip
